Genuine Yamaha Rigging
Controls
Flush Side-Mount Digital Control Main Station
Product ID: 6X9-48206-00-00
The flush side-mount digital control is perfect for rigging single-engine luxury pontoons, premium dual consoles, and more. It’s compatible with most digital Yamaha outboards from the 2.8L F150 to the XTO Offshore® and brings convenient, push-button activation of Speed Control, Trim Assist, and Neutral Hold to the single-engine set. It’s available for right-mount main or second stations, and features Helm Master® EX, second station, and wireless key fob compatibility. Offered in chrome and black and black-on-black trim styles.
Flush Side-Mount Digital Control Second Station
Product ID: 6X9-48206-10-00
The flush side-mount digital control is perfect for rigging single-engine luxury pontoons, premium dual consoles, and more. It’s compatible with most digital Yamaha outboards from the 2.8L F150 to the XTO Offshore® and brings convenient, push-button activation of Speed Control, Trim Assist, and Neutral Hold to the single-engine set. It’s available for right-mount main or second stations, and features Helm Master® EX, second station, and wireless key fob compatibility. Offered in chrome and black and black-on-black trim styles.
Single-Engine Binnacle Controls
Product ID: 6X9-48205-00-00
Our single binnacle controls are available in premium bottom-mount or side-mount designs, and as second station controls, accommodating a variety of boat styles and rigging spaces. They feature effortless throttle and shift functions, sleek, chrome handles, a built-in redundancy system, and convenient push-button activation of Neutral Hold, Speed Control with Pattern Shift, Trim Assist, and Station Selection (if you have a second station). The bottom-mount style also features integrated Power and Start/Stop buttons for a cleaner dash. The ‘plug-and-play’ designs of these controls make adding a second station control a breeze. Offered in chrome and black and black-on-black trim styles.
Gauges
Analog Combo Gauge - Tach/Trim - Chrome Bezel/White Face
Product ID: N80-8350T-00-00
The NEW Combination gauges offer the same choice of four distinctly different bezel and face combinations but bring together two functions in each gauge. Identical in size to their Classic and Sport brethren, they save space on the console yet offer the same quality and performance.
Sport Series Analog Tachometer
Product ID: N80-83540-30-00
This four-inch, backlit, analog gauge displays engine RPMs up to 7000. It features a modern faceplate design, and comes in either a chrome bezel with black, silver or white faceplates, or a black bezel with a black faceplate. All gauge face styles feature warning indicators.
Sport Series Analog Tachometer
Product ID: N80-83540-20-00
This four-inch, backlit, analog gauge displays engine RPMs up to 7000. It features a modern faceplate design, and comes in either a chrome bezel with black, silver or white faceplates, or a black bezel with a black faceplate. All gauge face styles feature warning indicators.
Switch Panels
Triple-Engine Main Station Switch Kit
Product ID: 6X9-82570-40-00 / 6X9-82570-00-00
All new back-lit switch panels offer a slim, space-saving, push-button design and modern look.
These new panels save critical dash space (i.e. a small “All Start” panel can be mounted on the console on multi-engine installs, while the required individual outboard push-button start panel can be located in a less useable and/or noticeable location). This leaves space for more equipment, and the modern look of the panels can help the
aesthetic appeal of the console.
Triple-Engine Second-Station Switch Panel
Product ID: 6X9-82570-B0-00 / 6X9-82570-40-00
It allows the transfer of control between stations or starting and stopping the engine with the push of a button.
Twin-Engine Main Station Switch Kit
Product ID: 6X9-82570-10-00
All new back-lit switch panels offer a slim, space-saving, push-button design and modern look.
These new panels save critical dash space (i.e. a small “All Start” panel can be mounted on the console on multi-engine installs, while the required individual outboard push-button start panel can be located in a less useable and/or noticeable location). This leaves space for more equipment, and the modern look of the panels can help the
aesthetic appeal of the console.
Touchscreen Displays

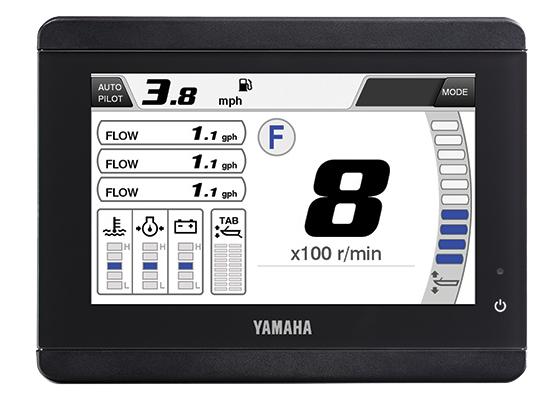

CL7 7-Inch Touchscreen Display
Product ID: 6YD-83710-00-00
Yamaha’s most exciting and streamlined instrumentation yet, the CL7 allows you to monitor vital boat functions and the performance of up to four outboards on a single screen. With new functionality and software upgrades, CL7 now has Command Link® capability, which includes gauge integration, mapping and NMEA 2000™ networking.
Other Options
Battery Management System
Product ID: 6X9-762C0-00
The new Battery Management System has three exciting advantages: Increased reliability. Lighter weight. Greater convenience. Enables you to turn on your battery switches and boat lights easily with the click of your key fob. It also lightens the boat and boosts reliability by requiring only two starting batteries for up to five engines, and prioritizing charging the starting batteries before charging house batteries.
Autopilot Panel
Product ID: 6X9-8253V-00-00
Yamaha’s new autopilot offers a host of customer amenities and benefits, and is a required installation for the full Helm Master EX system. It includes a small panel on the console, a heading sensor under the console, an antenna above the boat, and a control unit. Yamaha autopilot provides many convenient features for boat control and
operation, and serves as the gateway to new features and benefits.
Digital Electric Steering Module
Product ID: 6X9-42401-00-00
Official Yamaha Rigging Yamaha’s Digital Electric Steering (DES) - similar to that built

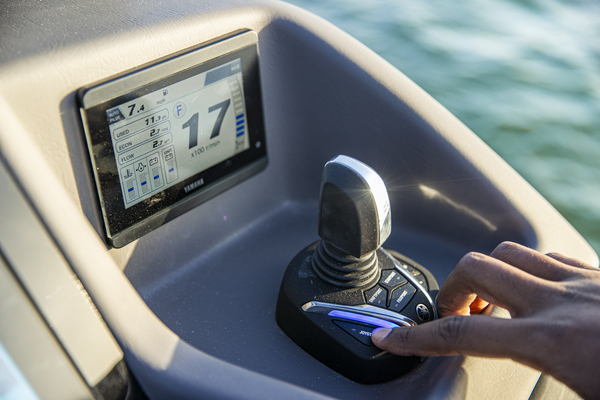

RIGGING SELECTOR
