In-Line Four
Digital: 200 hp, 150 hp | Mechanical 200 hp, 150 hp
The legendary Yamaha F150 has enjoyed over a decade of unrivaled popularity. Powerful, light, nimble, and compact, boaters know its proven reliability and performance is unmatched for a broad range of boat styles and hulls. In fact, its versatile technology inspired the F200, which has also quickly become a favorite. Now with integrated steering, both the F150 and F200 let boaters hit the water with responsive performance, a cleaner bilge and more space on the boat for storage and comfort. Year after year, Yamaha’s In-Line Fours just keep getting better and better.
Meet the Lineup

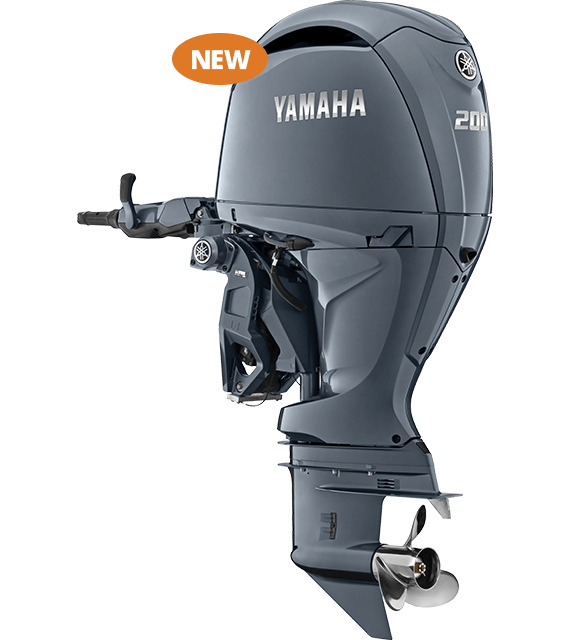

200 HP
With impressive power-to-weight, volumetric efficiency and integrated steering, this In-Line Four is the perfect, lightweight 200-hp solution for small- to medium-size boats. Its unique Variable Camshaft Timing (VCT) improves intake and exhaust efficiency and boosts torque throughout the rev range.
- Comes with integrated electro-hydraulic steering for digital models and integrated hydraulic steering for mechanical models
- Runs on economical 89 octane
- Only 525 pounds (20” shaft DEC model)
- 20” or 25” shaft options
- 50-amp alternator provides plenty of power for onboard electronics
- Digital F200 available exclusively in new pearlescent white
- Mechanical F200 available in signature Yamaha gray
150 HP
The In-Line Four 150 is one that started it all and it’s more popular than ever. Powerful, light and compact, it’s mechanical or digital compatible and uses integrated steering, making it more streamlined and responsive than ever before.
- Comes with integrated electro-hydraulic steering for digital models and integrated hydraulic steering for mechanical models
- Only 509 pounds (20” shaft DEC model)
- Available in 20” or 25” shafts
- Powerful 50-amp alternator (2.8-liter digital) or 35-amp alternator (2.7-liter mechanical)
- Digital F150 available in new pearlescent white and signature Yamaha gray
- Mechanical F150 available in signature Yamaha gray
200 HP
Engine Comparison
| Weight † | Mechanical - 234 kg (516 lbs) / DEC - 238 kg (525 lb) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | Inline 4 |
| Displacement | 2.8L |
| Bore x Stroke | 96 x 96.2mm (3.78 x 3.79in) |
| Prop Shaft Horsepower | 200hp @ 5500 rpm |
| Alternator Output at W.O.T. | 50 Amp |
| Compression Ratio | 10.3:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10 Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16-valve |
| Ignition | TCI Microcomputer |
| Spark Plug | NGK-LFR6A-11 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 4.5L/4.3L w/without filter |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 1.86:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20" / 25" |
| Degree of Tilt | 70° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 26" |
| Steering | |
| Steering Angle (maximum) | 30° from center, either direction |
| Warranty | Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
150 HP
Engine Comparison
| Weight † | 20” Mechanical 231kg (509 lbs) 20” DEC 237kg (522 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | Inline 4 |
| Displacement | 2.7L (Mechanical) / 2.8L (DEC) |
| Bore x Stroke | 94 x 96.2 (3.70 x 3.79in) / 96 x 96.2mm (3.78 x 3.79in) |
| Prop Shaft Horsepower | 150hp @ 5500 rpm |
| Alternator Output at W.O.T. | 35 / 50 Amp |
| Compression Ratio | 9.0:1 / 10.3:1 |
| Recommended Fuel | Octane 87 / Octane 89 |
| Recommended Fuel Filtration | Yamaha 10 Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | NGK-LFR6A-11 / LFR5A-11 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 4.5L / 4.3L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.00:1 |
| Gear Shift | F-N-R |
| Shaft Length | 20" / 25" |
| Degree of Tilt | 70° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 26" |
| Steering | |
| Steering Angle (maximum) | 30° from center, either direction |
| Warranty | Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
200 HP
The In-Line Four 200 is compatible with a range of mechanical or digital controls, gauges and props to suit your preference for performance, control and the display of data. Explore compatible components below and contact your dealer for rigging expertise.

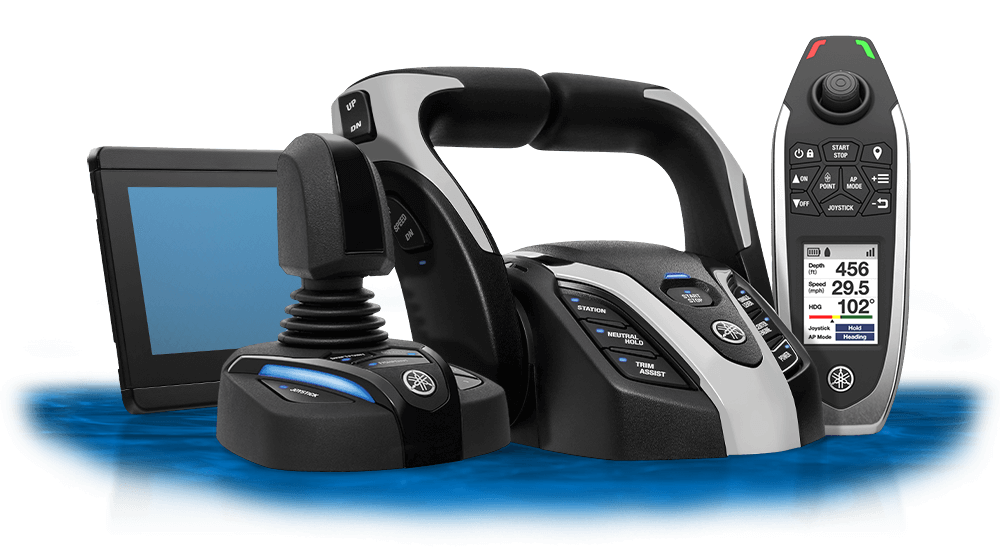

Compatible Controls
Compatible Gauges
Prop Selector
Enter your details. Find the right prop. Easily zero-in on the best propeller options based on your type of craft, horsepower and performance goals with this smart, online tool.
visit yamaha prop selector
150 HP
The In-Line Four 150 is compatible with a range of mechanical or digital controls, gauges and props to suit your preference for performance, control and the display of data. Explore compatible components below and contact your dealer for rigging expertise.
Compatible Controls
Compatible Gauges
Prop Selector
Enter your details. Find the right prop. Easily zero-in on the best propeller options based on your type of craft, horsepower and performance goals with this smart, online tool.
visit yamaha prop selector
